SHEDS & STORAGE

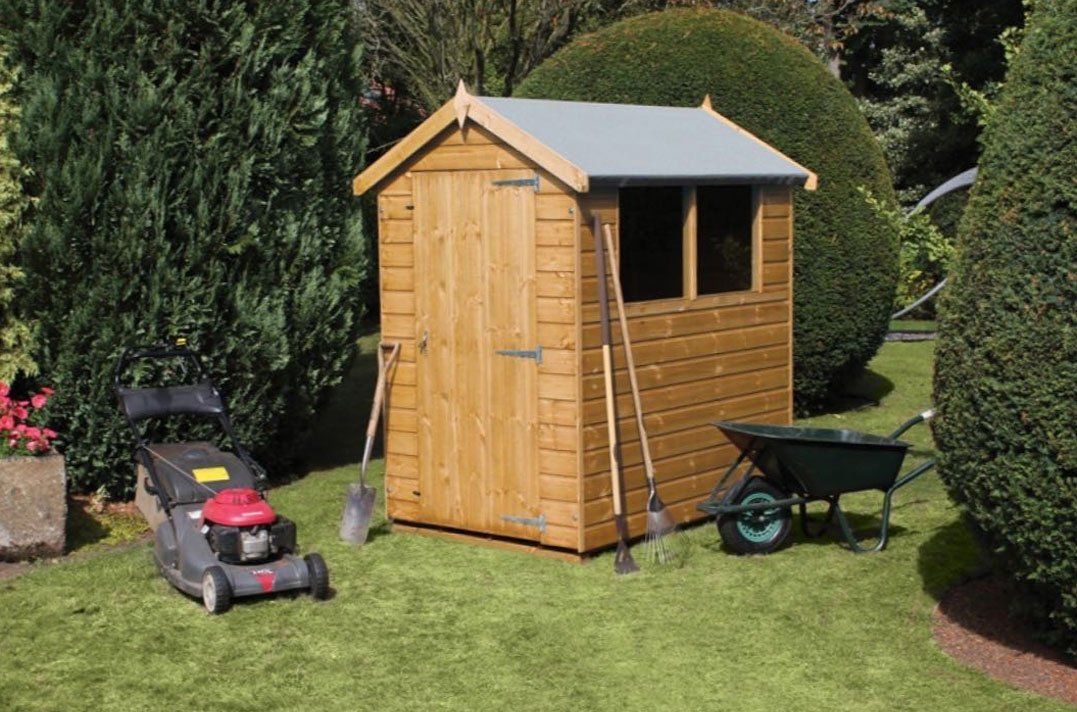

Dalby Apex

Dalby Apex

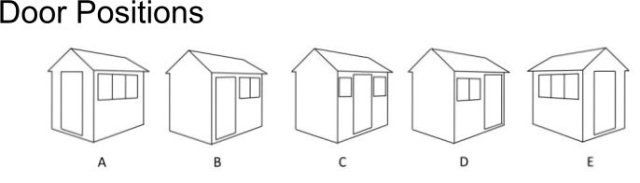

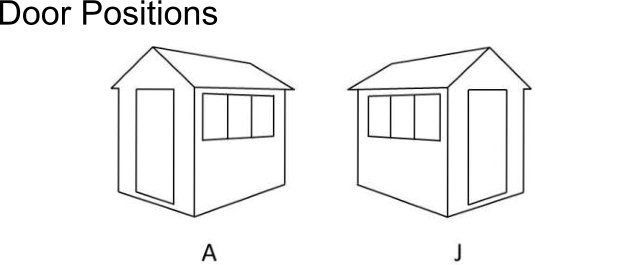

graphical outline of door positions

This garden building is from our best selling range with quality features including a ledged and braced door with lock and key, zinc hinges and zinc 'D' handle are all included as standard. The windows are 24" x 24" (quantity dependent on size of building), and glazed with horticultural glass.

  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1680mm
  • Ridge:  4' - 1985mm, 5' - 2050mm, 6' - 2160mm,  8' - 2280mm
  • Windows: 610mm x 610mm
  • Door: 1765mm x 762mm
  • Zinc Hinges, Zinc 'D' Handle, Lock & Key


**UPGRADES AVAILABLE**

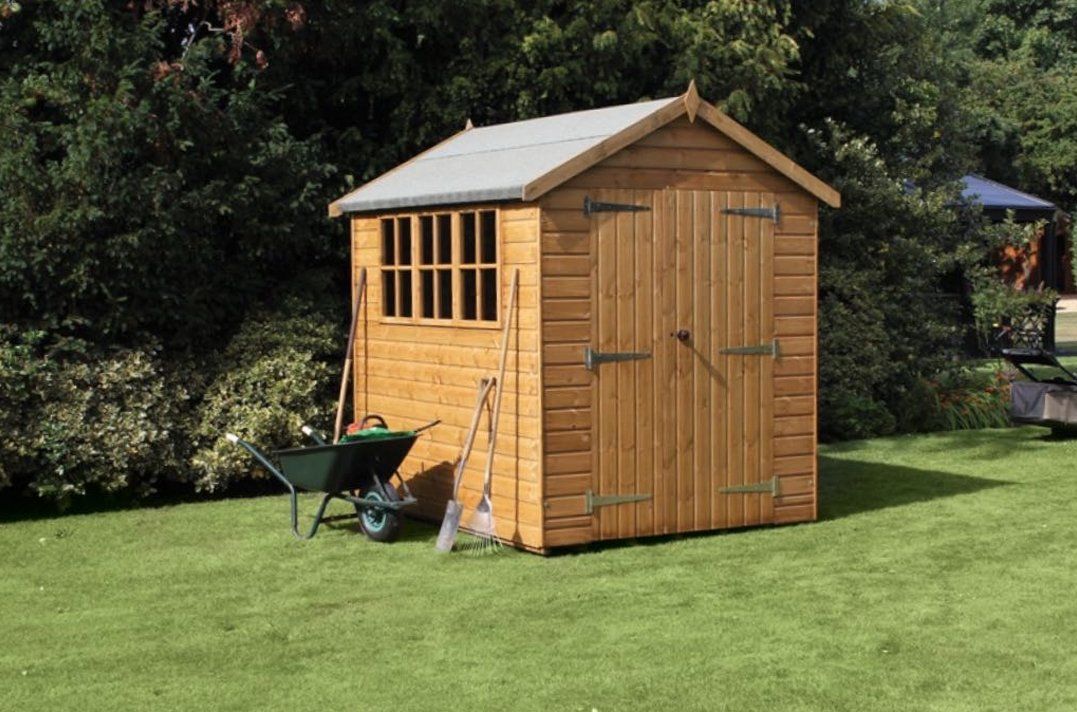

Heavy Duty Apex

Heavy Duty Apex
graphical outline of door positions
The Heavy Duty Apex is a versatile building with various door and window positions and is offered in a large range of sizes. Quality features include 50mm x 50mm smooth planed framing with diagonal cross bracing, tongue and groove cladding, ledged and braced door with zinc hinges, rim lock and door knob, a 3 pane Georgian window glazed with horticultural glass and heavy duty green mineral roofing felt are all included as standard.
  • Dip Treated (tanalised upgrade available)
  • Framing: 50mm x 50mm
  • Eaves: 1895mm
  • Ridge: 8' - 2490mm; 10' - 2595mm, 12' - 2690mm
  • Georgian Windows: 610mm x 457mm (Fixed x 2), 552mm x 400mm (Opener)
  • 3' Door: 1880mm x 914mm (Ledged and Braced)
  • Zinc Hinges, Rim Lock and Door Knob
  • Heavy Duty Roof Felt



**UPGRADES AVAILABLE**

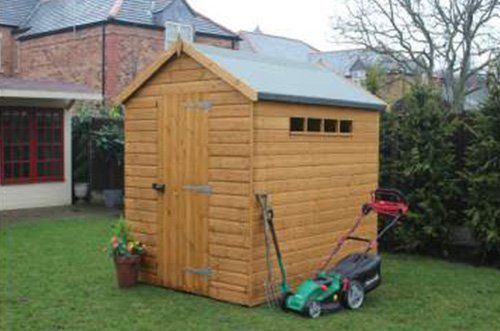

Security Apex

Heavy Duty Apex
graphical outline of door positions
The Security Shed is designed for storing valuable equipment. This sturdy shed is built to last with framing every 1ft throughout the building, featuring fully framed ledged & braced door which is available in various positions and is fitted with security bolted hinges and security padbolt protector. An internally glazed security window also offers maximum security.
  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1864mm
  • Ridge: 6' - 2350mm, 8' - 2475mm
  • Window: 1220mm x 150mm
  • Door: 1880mm x 762mm (50mm x 50mm fully framed)
  • Zinc Security Bolted Hinges
  • Security Bolted Padbolt Protector



**UPGRADES AVAILABLE**

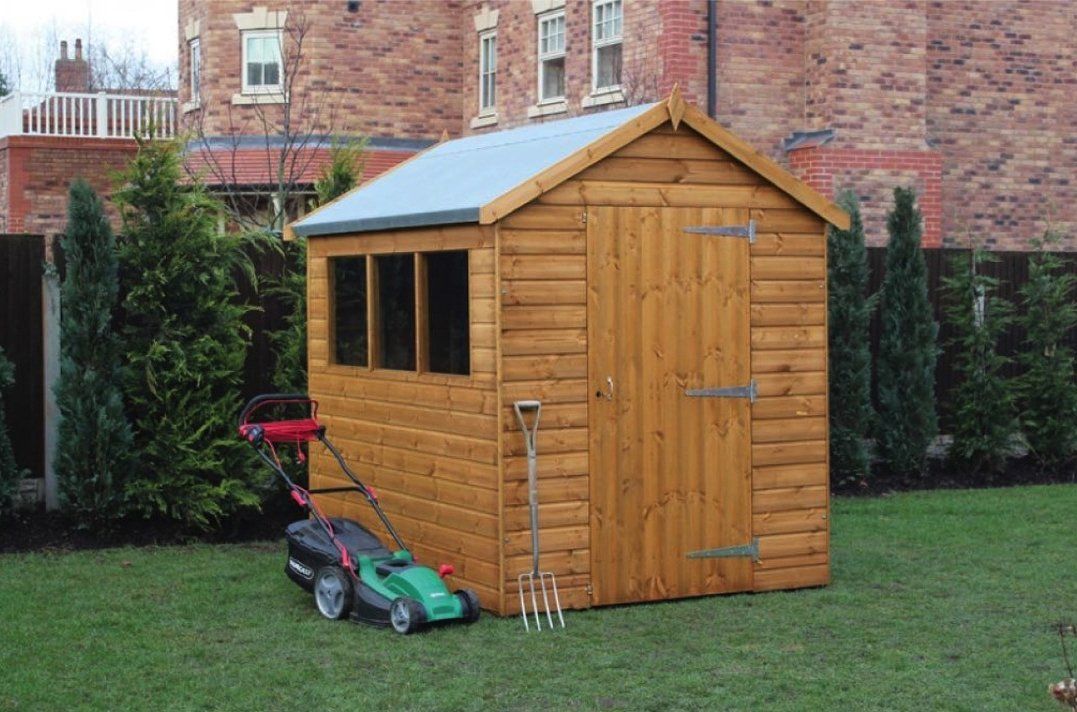

Supreme Apex

garden shed
graphical outline of door positions
Whether you need room for an exterior workspace or simply an additional space for storage, the Supreme provides an attractive solution. This extra high model is the ultimate versatile outdoor space. It comes complete with a fully framed ledged and braced 3' wide door wit optional door positions and diagonal side bracing these are all included as standard.
  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1864mm
  • Ridge: 4' - 2190mm, 5' - 2260mm, 6' - 2336mm, 8' - 2475mm
  • Window: 610mm x 610mm
  • 3' Door: 1880mm x 914mm
  • Zinc Hinges, Zinc 'D' Handle
  • Lock & Key



**UPGRADES AVAILABLE**

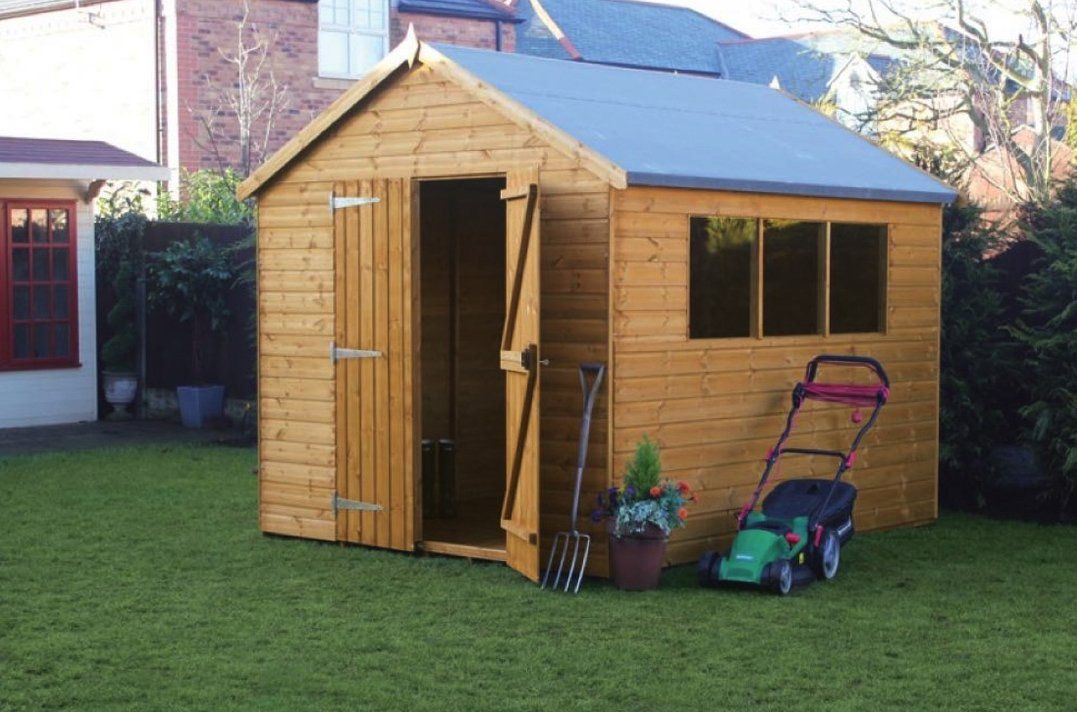

Supreme Apex Workshop

Supreme Workshop

The Supreme Workshop is the ideal way to create the extra space needed to indulge a hobby or undertake a new project. Installed in your back garden it will make better use of available space. With ledged and braced double doors allowing for easy access and 24" x 24" windows it makes the Supreme Workshop the ideal building.

  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1864mm
  • Ridge: 6' - 2336mm, 8' - 2475mm
  • Windows: 610mm x 610mm
  • Double Doors: 1880mm x 1220mm
  • Zinc Hinges
  • Zinc 'D' Handle
  • Lock & Key


**UPGRADES AVAILABLE**

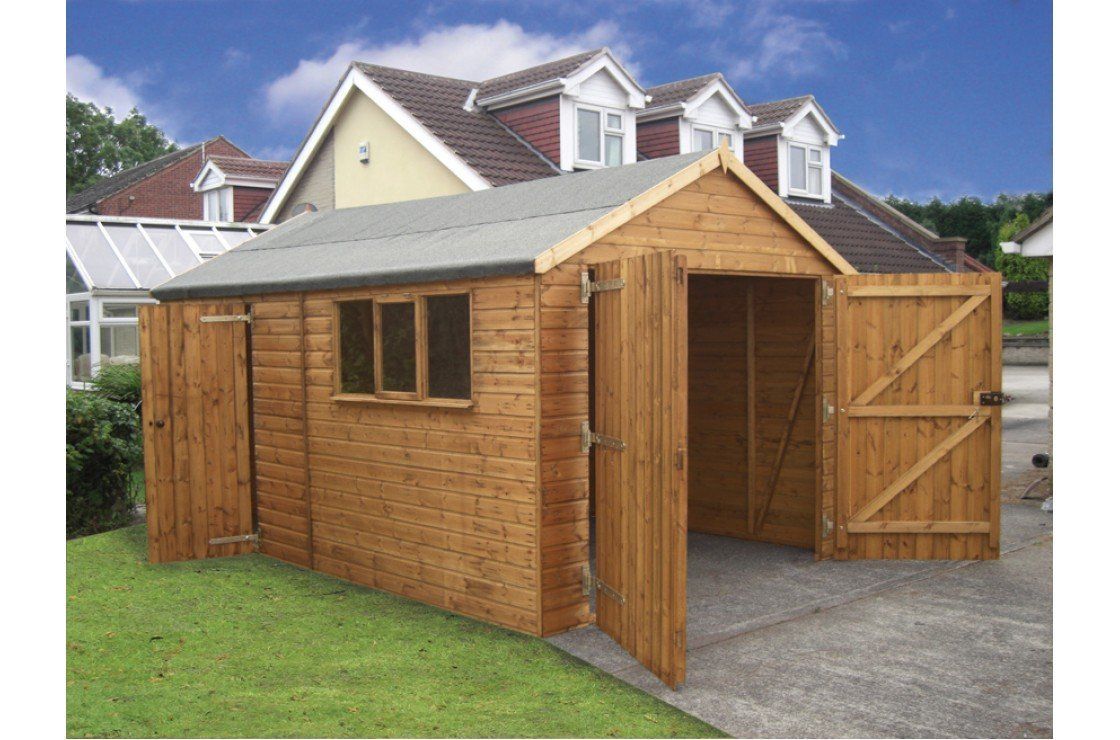

Garage

Built to an exceptionally high standard, this secure, solid structure compliments your surroundings. A timber garage will add value to your property whilst being installed with the bare minimum of building works. With our versatility in design, size and finish we can provide you with a garage that will meet all your requirements.

  • Dip Treated (tanalised upgrade available)
  • Framing: 50mm x 50mm
  • Eaves: 1895mm
  • Ridge: 8’ – 2490mm / 10’ – 2595mm / 12’ – 2690mm
  • Windows: 610mm x 457mm (Fixed x 2), 552mm x 400mm (Opener)
  • Double Doors: 1880mm x 2135mm (75mm x 50mm Ledged & Braced)
  • Side Door: 1775mm x 762mm (75mm x 50mm Ledged & Braced)
  • Heavy Duty Zinc Hinges
  • Rim Lock & Door Knob
  • No Floor
  • Heavy Duty Roof Felt
  • Roof Truss 75mm x 50mm

1 up to 15ft

3 up to 20ft

5 up to 30ft


**UPGRADES AVAILABLE**

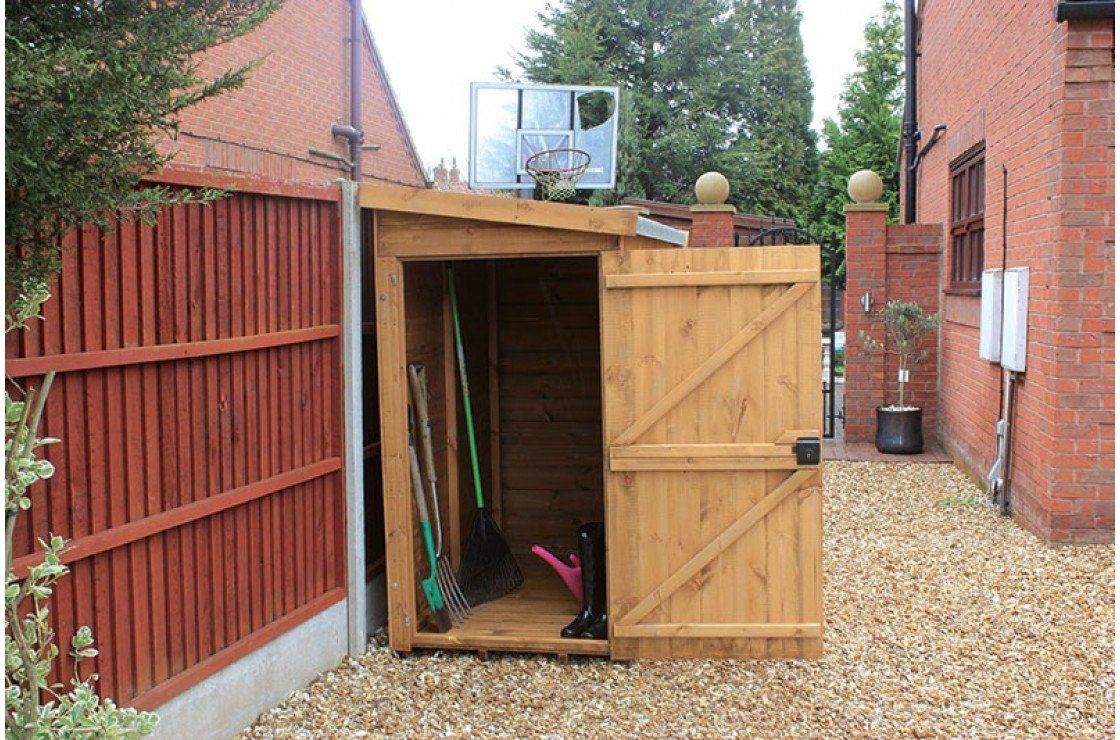

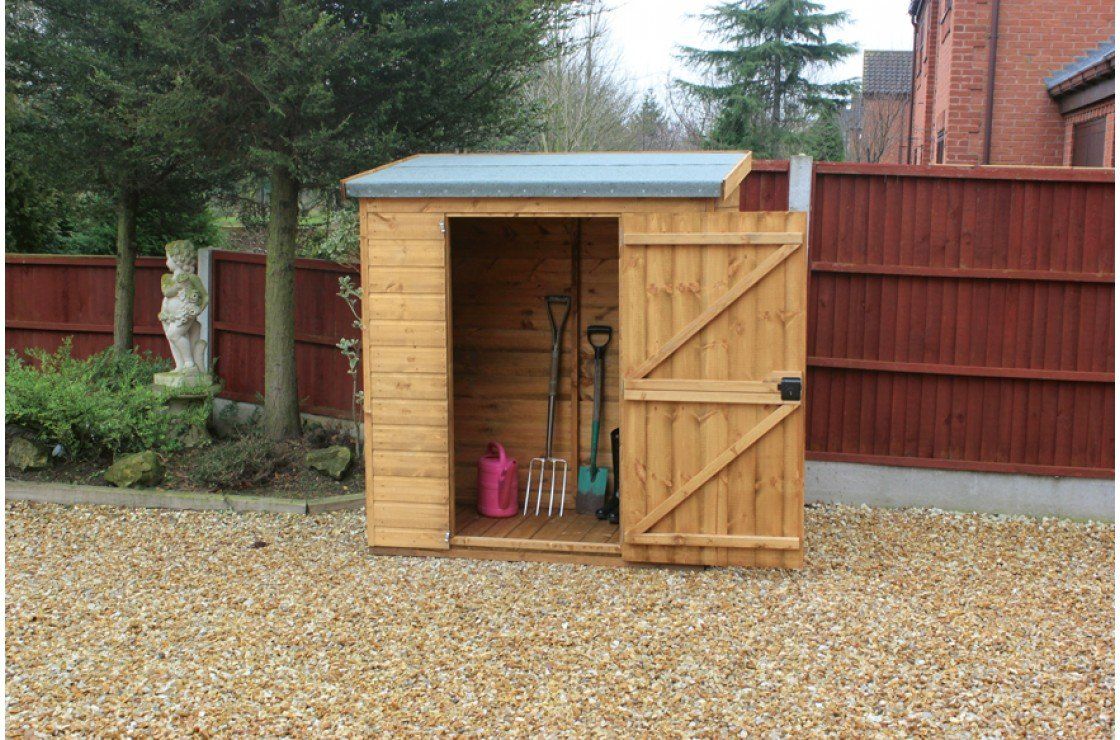

Tool Store

The Tool Store will find a home in the smallest of gardens, with its ultra-compact and practical design it hides ample space inside the building allowing you to keep garden tools and other essentials safe.

  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1610mm
  • Ridge: 1710mm
  • Door: 1460mm x 762mm (Available in any side or end wall)
  • Zinc Hinges
  • Zinc ‘D’ Handle
  • Lock & Key


**UPGRADES AVAILABLE**

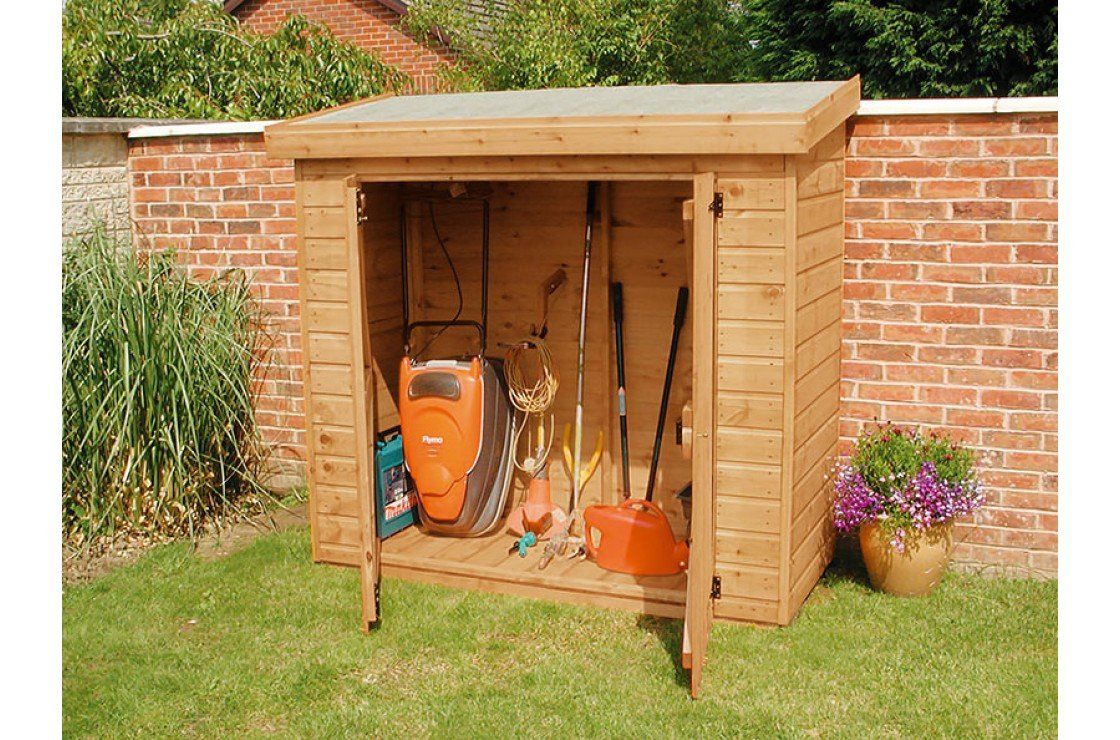

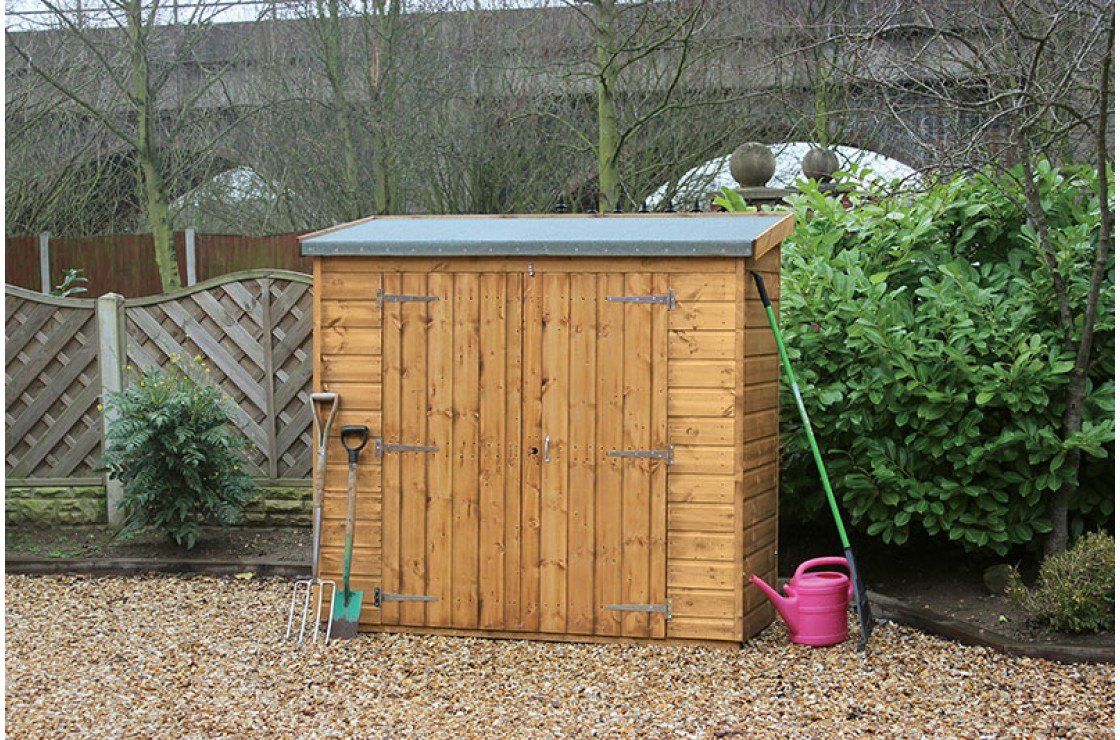

Tool Tidy

The Tool Tidy is ideal for fitting neatly at the edge of your house or garden a great value storage solution for smaller gardens. Features are a pent style roof, double doors with lock and key allowing convenient access for easy storage of your equipment.

  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1610mm
  • Ridge: 1710mm
  • Double Doors: 1460mm x 1320mm
  • Zinc Hinges
  • Zinc ‘D’ Handle
  • Lock & Key



**UPGRADES AVAILABLE**

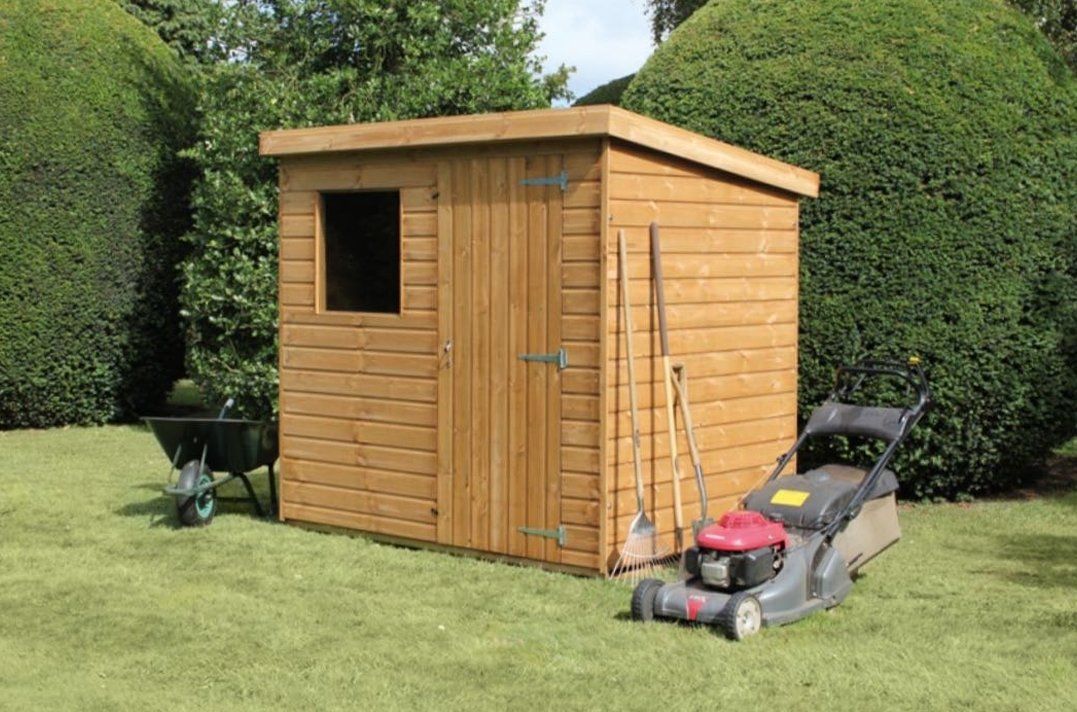

Dalby Pent

Dalby Pent

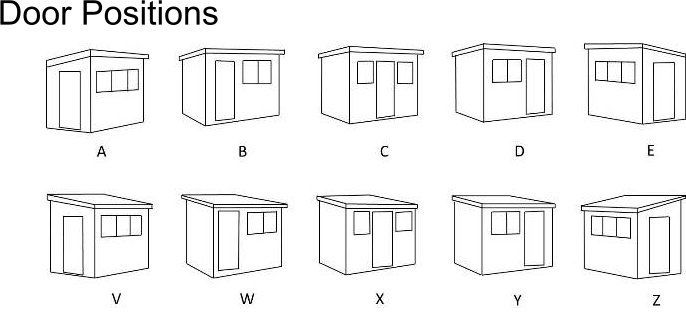

graphical outline of door positions

Another building from our best selling range with quality features including a ledged and braced door with lock and key, zinc hinges and zinc 'D' handle are all included as standard. The windows are 24" x 24" (quantity dependent on size of building), and glazed with horticultural glass.

  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1737mm
  • Ridge:1953mm
  • Windows: 610mm x 610mm
  • Door: 1820mm x 762mm
  • Zinc Hinges
  • Zinc 'D' Handle
  • Lock & Key


**UPGRADES AVAILABLE**

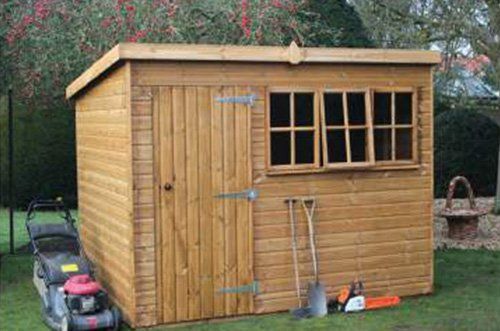

Heavy Duty Pent

Dalby Pent
graphical outline of door positions
The Heavy Duty Pent is a versatile building with various door and window positions and is offered in a large range of sizes. Quality features include 50mm x 50mm smooth planed framing with diagonal cross bracing, tongue and groove cladding, ledged and braced door with zinc hinges, rim lock and door knob, a 3 pane Georgian window glazed with horticultural glass and heavy duty green mineral roofing felt are all included as standard.
  • Dip Treated (tanalised upgrade available)
  • Framing: 50mm x 50mm
  • Eaves: 1937mm
  • Ridge: 2153mm
  • Georgian Windows: 610mm x 457mm (Fixed x 2), 552mm x 400mm (Opener)
  • 3' Door: 1880mm x 914mm (Ledged and Braced)
  • Zinc Hinges, Rim Lock and Door Knob
  • Heavy Duty Roof Felt
  •

**UPGRADES AVAILABLE**

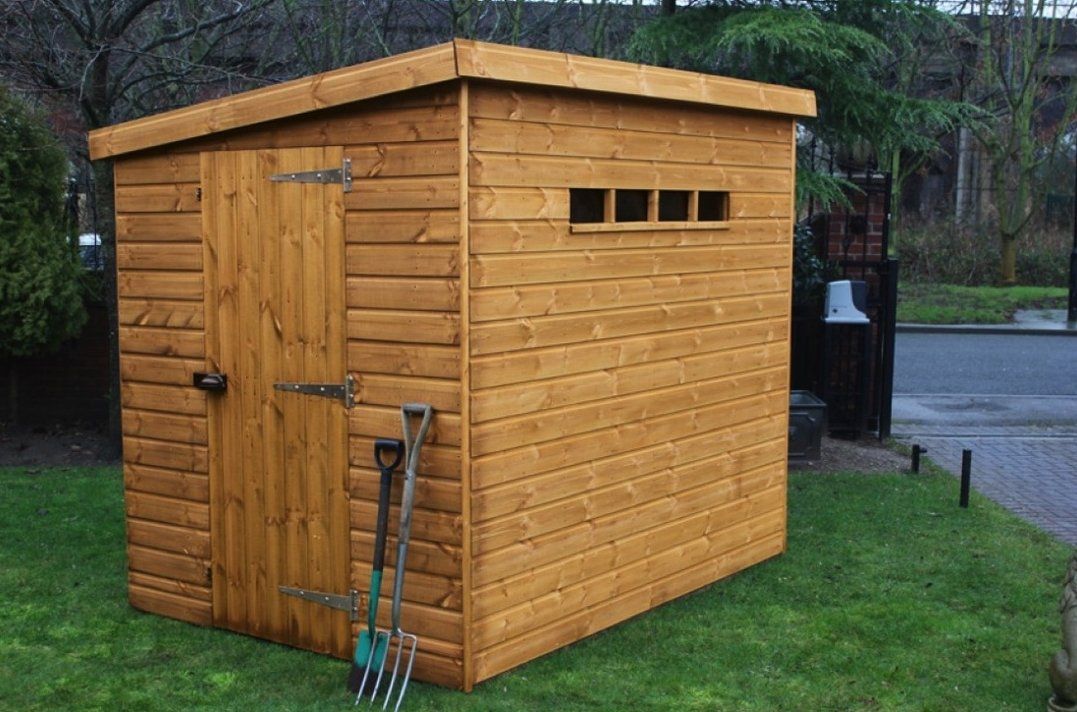

Security Pent

Security Pent
graphical outline of door positions
The Security Shed is designed for storing valuable equipment. This sturdy shed is built to last with framing every 1ft throughout the building, featuring fully framed ledged & braced door which is available in various positions and is fitted with security bolted hinges and security padbolt protector. An internally glazed security window also offers maximum security.
  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1937mm
  • Ridge: 2153mm
  • Window: 1220mm x 150mm
  • Door: 1880mm x 762mm (50mm x 50mm fully framed)
  • Zinc Security Bolted Hinges
  • Security Bolted Padbolt Protector



**UPGRADES AVAILABLE**

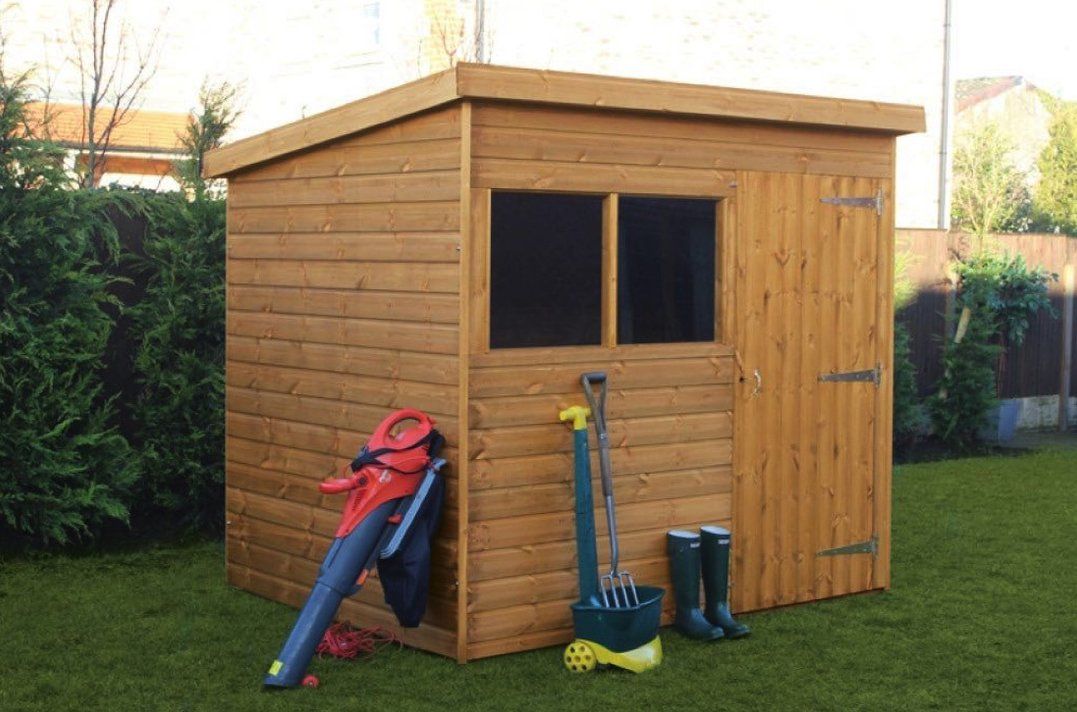

Supreme Pent

Supreme Apex/Pent
graphical outline of door positions
Whether you need room for an exterior workspace or simply an additional space for storage, the Supreme provides an attractive solution. This extra high model is the ultimate versatile outdoor space. It comes complete with a fully framed ledged and braced 3' wide door wit optional door positions and diagonal side bracing these are all included as standard.
  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Pent Eaves: 1937mm
  • Pent Ridge: 2153mm
  • Window: 610mm x 610mm
  • 3' Door: 1880mm x 914mm
  • Zinc Hinges, Zinc 'D' Handle
  • Lock & Key



**UPGRADES AVAILABLE**

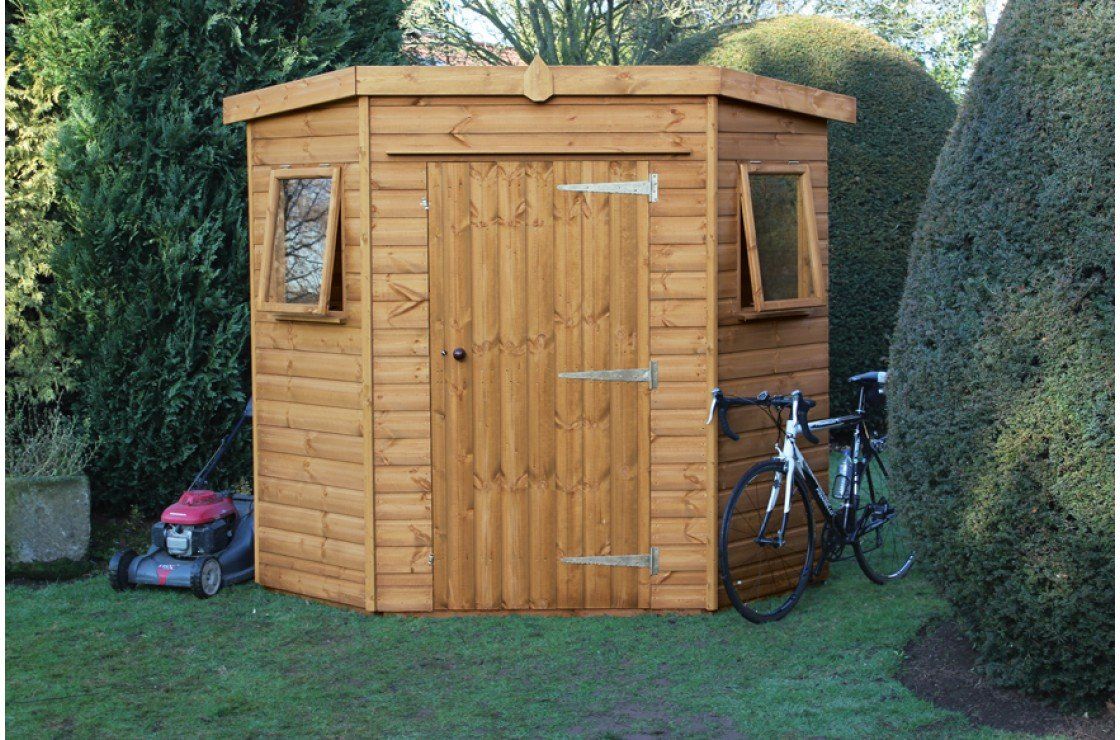

Corner Shed

The clever design of this shed allows it to fit neatly into the corner of your garden. It has ample inner capacity for storing your gardening items. A 3ft wide ledged and braced door with rim lock and door knob are fitted to ensure easy access. Joinery opening windows are included as standard.

  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1937mm
  • Ridge: 2153mm
  • Windows: 6’ – 610mm x 457mm,7’ – 610mm x 457mm, 8’ – 610mm x 980m
  • Door: 1880mm x 914mm (Ledged & Braced)
  • Zinc Hinges
  • Rim Lock & Door Knob


**UPGRADES AVAILABLE**

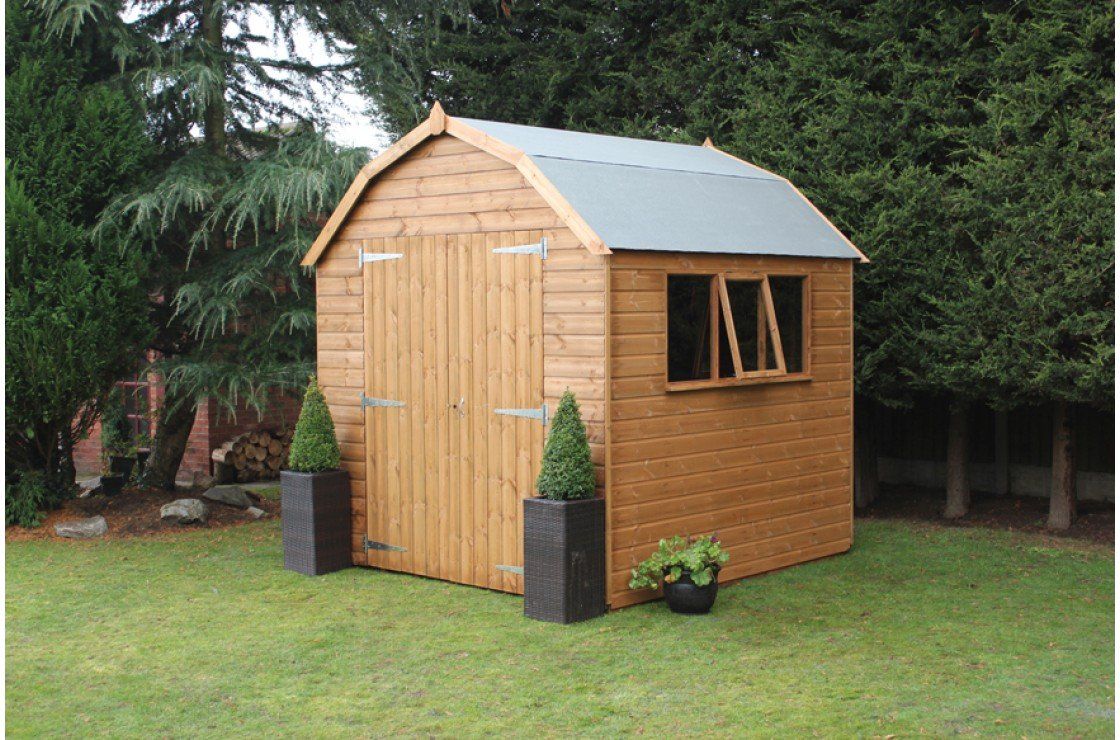

Dutch Barn

The Dutch Barn is skilfully handcrafted using quality timber. The end result is a high quality building finished with individual style which will look great in any garden. The Dutch Barn not only does it look fantastic with its stylish curved roof, it also provides excellent storage potential with significant head height. Quality features are ledged and braced double doors, a 3 pane joinery opening window plus an internal braced loft, these are all included as standard.

  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1965mm
  • Ridge: 2700mm
  • Windows: 610mm x 457mm (Fixed), 552mm x 400mm (Opener)
  • Loft: 800mm (width)
  • Double Door: 5’: 2030mm x 1510mm (Ledged & Braced)
  • Zinc Hinges
  • Zinc ‘D’ Handle
  • Lock & Key


**UPGRADES AVAILABLE**

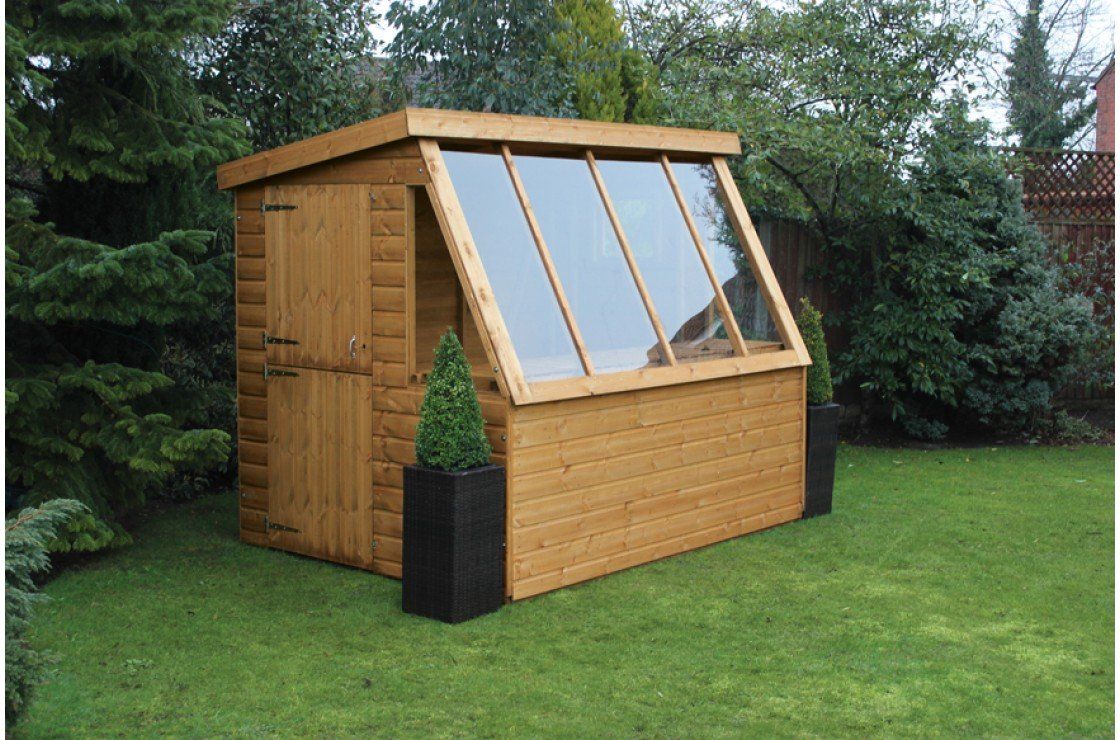

Potting Shed

The Potting Shed is a traditional garden building which offers practicality and beauty. This building is any gardeners dream because of its ideal and spacious design. It also comes with robust slatted staging under the window which can be used for urban farming or cultivating your plants. A ledged and braced stable door and one opening widow in the side comes as standard.

  • Dip treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1854mm
  • Ridge: 2058mm
  • Windows: 6’ – 1530mm x 1200mm, 8’ – 2160mm x 1200mm, 10’ – 2750mm x 1200mm
  • Joinery Opening Window in one end
  • Stable Door: 1765mm x 762mm
  • Full Length Slatted Staging
  • Zinc Hinges
  • Zinc ‘D’ Handle
  • Lock & Key

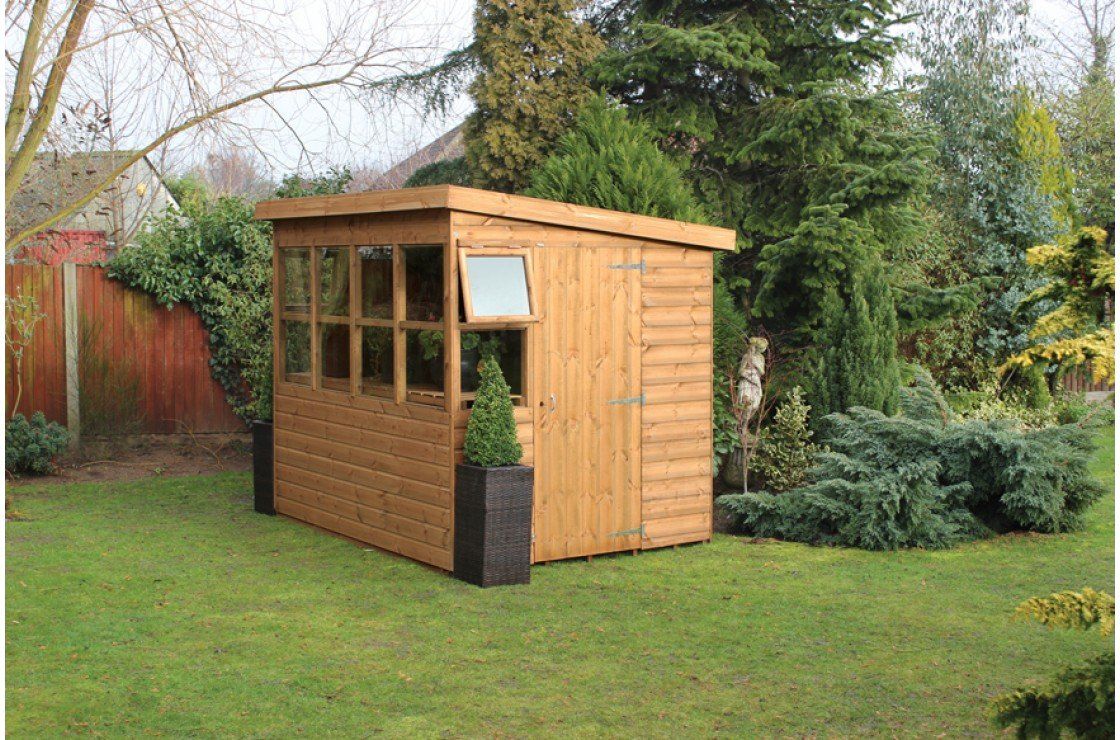

Sun Pent

The Sun Pent is specially designed to help gardeners protect their plants and produce during those crucial early stages. It comes complete with a full height ledged and braced door, 1no opening window in each end and slatted staging under the window.

  • Dip treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 1860mm
  • Ridge: 2057mm
  • Windows: 6’ – 1645mm x 905mm, 8’ – 2220mm x 905mm 10’ – 2805mm x 905mm
  • Joinery opening window in each end
  • Door: 1765mm x 762mm
  • Full Length Slatted Staging
  • Zinc Hinges
  • Zinc ‘D’ Handle
  • Lock & Key


**UPGRADES AVAILABLE**

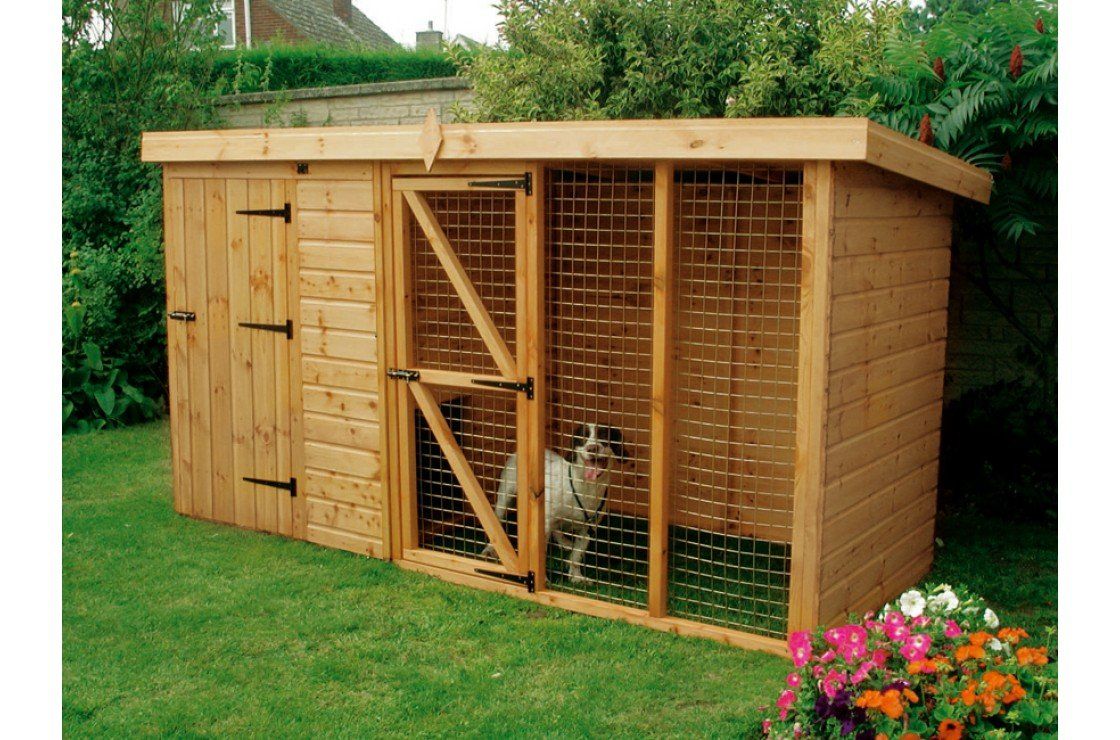

Kennel & Run

Dogs enjoy the great outdoors, but also like a safe place to retreat. This means no matter how much freedom you give your dog it will naturally seek a safe and protective place to call home. Our Kennel and Run offers standard features including 4’ x 4’ kennel with floor, front door with tower bolt, dog access hole and a 4', 6’ and 8’ run made from 50mm x 50mm galvanized heavy duty wire mesh on 50mm x 50mm framing, door to run also complete with tower bolt.

  • Dip Treated (tanalised upgrade available)
  • Framing 38mm x 50mm
  • Eaves: 1423mm
  • Ridge: 1600mm
  • Doors: 1455mm x 596mm
  • Zinc Hinges
  • Tower Bolt

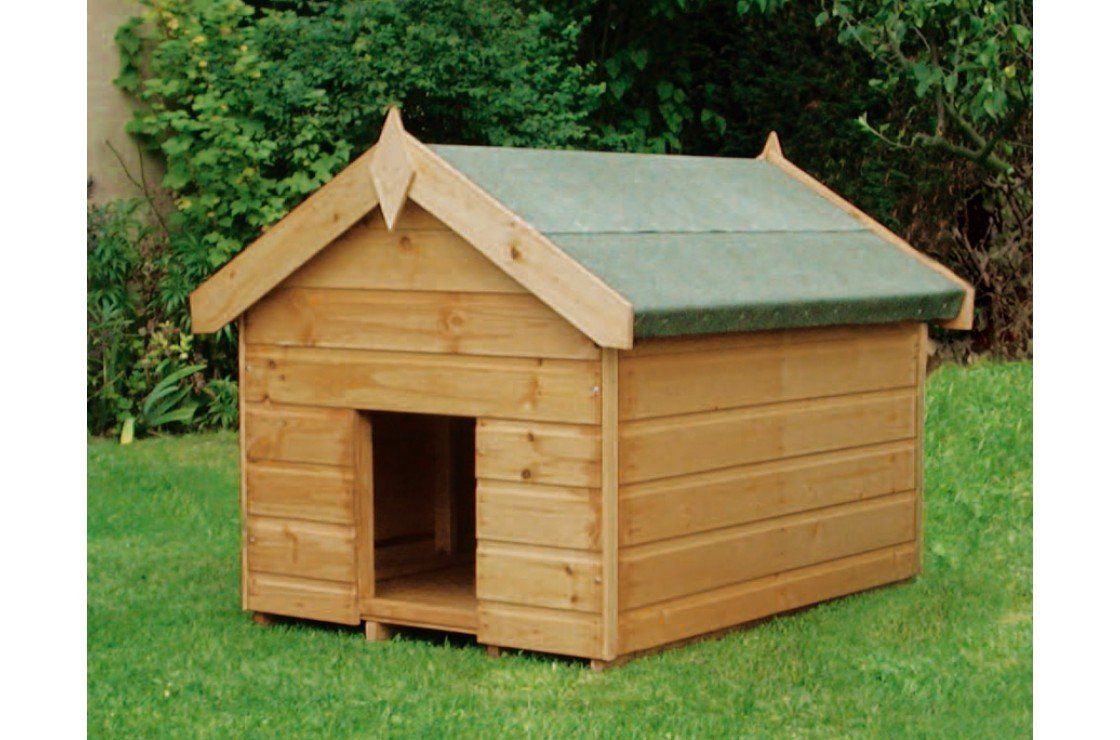

Yard Kennel

This traditional apex style Yard Kennel provides your pet with a dry, warm, sheltered place to retreat. The Yard Kennel is available in various sizes to accommodate the size of your pet.

  • Dip Treated (tanalised upgrade available)
  • Framing: 38mm x 50mm
  • Eaves: 660mm
  • Ridge: 940mm
  • Hole size: 380mm x 305mm
